Venting of Housings

Schreiner Group develops application-specific venting solutions reliably protecting housings against harmful media and liquids while enabling necessary pressure compensation for the housing.

The most important functionalities of a membrane are described below

Airflow

Venting of housings is important for preventing deformations.

Controls Airflow in a Housing

Airflow is the measure for the gas permeability of a membrane. The airflow value indicates the level of protection a housing provides against pressure loads.

The air that is present in a housing causes overpressure or vacuum in case of temperature changes. As a result of inadequate compensation, the pressure loads lead to housing deformations up to and including damage to seals and weld seams, resulting in ingress of water and other harmful fluids that damage the sensitive electronics or may lead to functional failure of the application.

Housing without PCS
Housing without PCS
Housing with PCS
Housing with PCS
We need your consent to load Youtube videos!

This video is embedded in the extended data protection mode of Youtube, which blocks the setting of Youtube cookies until an active click on the playback. By clicking the play button, you consent to Youtube setting cookies on the device you are using, which may also be used by Youtube to analyze user behavior for market research and marketing purposes. If you have additionally given consent for Google Analytics in the privacy settings, data will also be transferred to Google Analytics to measure the performance of our videos.

Electronics housing without ventilation expands and can break
▶  Pressure Compensation Seals Pressure Compensation for Electronics Housings

Water Entry Point

Degree of protection against water ingress in a housing

Degree of Protection Against Water Ingress in a Housing

Pressure Compensation Seals have different water entry points, depending on the type and manufacturing method of the PCS. The water entry points indicate at what point water might start to penetrate the membrane and damage the sensitive electronics. Using compressed air, a corresponding water column is simulated on the PCS to determine the water entry point.

Water remains on membrane
Water remains on membrane
Water beads off membrane
Water beads off membrane
We need your consent to load Youtube videos!

This video is embedded in the extended data protection mode of Youtube, which blocks the setting of Youtube cookies until an active click on the playback. By clicking the play button, you consent to Youtube setting cookies on the device you are using, which may also be used by Youtube to analyze user behavior for market research and marketing purposes. If you have additionally given consent for Google Analytics in the privacy settings, data will also be transferred to Google Analytics to measure the performance of our videos.

Pressure Compensation Seals prevent water from entering the electronics housing
▶  Pressure Compensation Seals prevent water from entering the electronics housing

Oleophobicity

Oleophobicity–protection level against harmful liquids in the automotive environment

Protection Level Against Harmful Liquids in the Automotive Environment

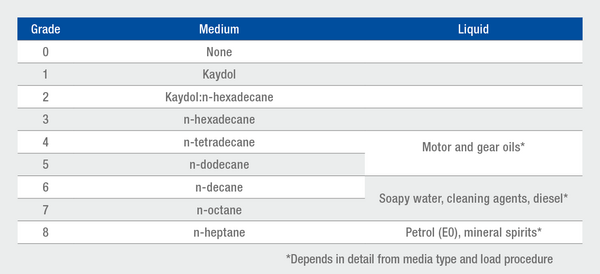

Oleophobicity describes the wettability of a material with non-polar liquids and is represented in degrees.

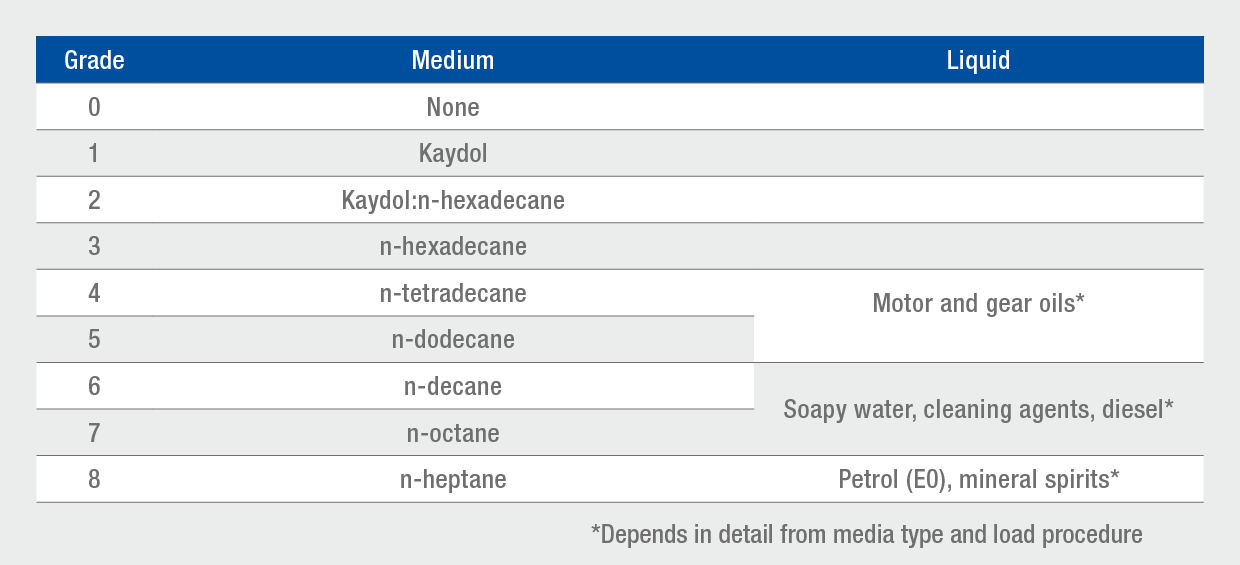

For oleophobicity testing, defined drops are applied to the membrane surface. Subsequently, behavior is evaluated and categorized.

We need your consent to load Youtube videos!

This video is embedded in the extended data protection mode of Youtube, which blocks the setting of Youtube cookies until an active click on the playback. By clicking the play button, you consent to Youtube setting cookies on the device you are using, which may also be used by Youtube to analyze user behavior for market research and marketing purposes. If you have additionally given consent for Google Analytics in the privacy settings, data will also be transferred to Google Analytics to measure the performance of our videos.

Pressure Compensation Seals prevent hazardous media from entering the electronics housing
▶  Pressure Compensation Seals prevent hazardous media from entering the electronics housing

Robustness

High media resistance in snow

Additional Protection Against Harmful Media and Environmental Conditions

Climatic and humidity/moisture resistance are essential to versatile utilization of pressure compensation seals in industrial settings. A PCS must resist harshest requirements due to temperature shocks and retain its full functionality.

The extent of necessary media resistance has consistently been growing in recent years and PCS are exposed to battery acid, transmission fluids, degreasers, or anti-freeze, for example.

Our self-adhesive PCS are also used on a wide variety of surfaces where permanent adhesion to the substrate must be ensured.

Climate test
Peak test

Environmental Protection/Compliance

Leaves on tree

Compliance with Standards and Legal Requirements

All of Schreiner Group’s pressure compensation seals for venting are free of harmful substances and contain no perfluorooctanoic acid (PFOA) and PFOA-related compounds. This ensures that no persistent organic pollutants harm humans and the environment as well as compliance with EU POP Regulation 2019/1021.

With our products, we comply with the requirements of the REACH (Registration, Evaluation and Authorization of Chemicals) and RoHS (Restriction of Certain Hazardous Substances) regulations as amended.

All Schreiner Group membranes are PFOA free
[Translate to en:] reach compliant
[Translate to en:] RoHS compliant
The Schreiner Group works in accordance with PFHxA

Customization

Compliance with Process Requirements and Optimizations

Modern and automated production operations entail corresponding requirements for the delivery quality of products.

Customers can choose between a wide variety of standardized forms of delivery, and specialized forms of delivery such as ESD bags against electrostatic charging or protected packaging for overseas shipments are part of our delivery portfolio as well.

Our transparent end-to-end tracing system meets the highest automotive demands. Every roll is quality-inspected and provided with a closure seal.

Customized forms of delivery/packaging are always available and can be provided with different winding reel sizes for automated processing systems.

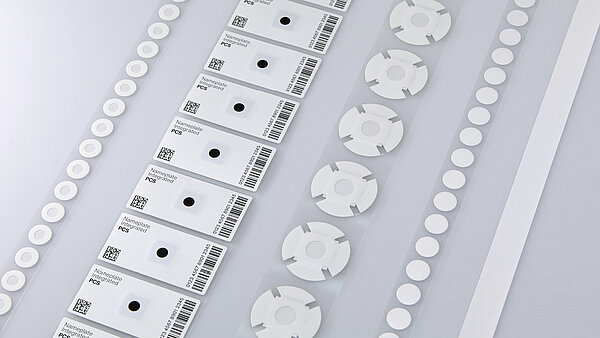

Pressure compensation seals on roll discs
PCS on roll discs
Pressure compensation seals packed with transport protection
Additional transportation protection

Venting Solutions

Pressure Compensation Seals consist of a watertight and dustproof yet air-permeable membrane enabling air exchange in housings and protecting electronics against liquids and dirt.

The installation of a PCS depends on application-specific requirements. Your Pressure Compensation Seal will deliver its full performance only when installed in the correct position. Special emphasis is placed on the design of the vent hole and precision application of the PCS.

Self-adhesive component design
Self-adhesive component design
Ultrasonic welded component design
Ultrasonic welded component design

System Expert

For testing the full functionality of a pressure compensation seal after application to your component, we’ll be pleased to support you in selecting suitable measuring tools and testing methods.

Our systems expertise extends from individual PCS dispensing and testing/inspection units to fully automated system solutions. We’ll be pleased to advise you regarding the wide variety of customized options.

Find out more

Dispensing unit for pressure compensation seals
Product Solution

Pressure Compensation Seals for the Technical Industry

Pressure Compensation Seals enable pressure compensation in enclosures with their air-permeable membrane with oleophobic properties.

Find out more

Product Solution

Pressure Compensation Seals for the Automotive Industry

We offer Pressure Compensation Seals for numerous automotive applications: from sensors to electric motors to vehicle lighting.

Find out more
