PCS HighProtect

Pressure Compensation Seals for maximum protection. Flexibility in product selection through a practical modular system.

PCS HighProtect – Maximum Protection

Maximum Protection Through an Innovative Product Solution

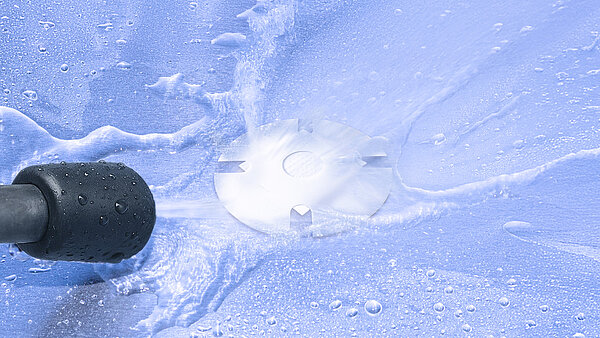

Pressure Compensation Seals with high-pressure cleaner

With a unique design that incorporates a specially developed duct system, the pressure compensation membrane protects housings from dust, dirt and liquids while ensuring stable air circulation. The PCS HighProtect also meets high protection classes such as IP4X, IP6K7 and IPX9K, which makes it particularly resistant to extreme external influences. The element can even withstand direct bombardment from high-pressure cleaners and is ideal for use in harsh environments such as the engine compartment or in electronic control units. The special feature: The PCS HighProtect modular system offers solutions tailored to your individual requirements and applications.

Your Advantages at a Glance

  • Space and weight reduction:
    The compact design of the pressure compensation membrane enables optimum adaptation to existing housing ventilation openings
  • Highest resistance:
    Protection against dust, liquids and mechanical influences
  • Maximum flexibility:
    Selection of the right variant for a wide range of applications
  • Cost reduction:
    Use of rolled goods instead of bulk goods

The Choice is Yours

Our modular system enables customized solutions for a wide range of pressure equalization requirements in enclosures.

[Translate to English:] DAE HighProtect I

PCS High Protect I

The HighProtect variant for a versatile use. Despite its small size, the HighProtect has a good air flow with high water retention capacity.

[Translate to English:] DAE HighProtect II

PCS High Protect II

The larger HighProtect version for demanding tasks. The optimized design enables a higher air flow rate while maintaining a high water retention capacity.

[Translate to English:] DAE HighProtect III

PCS High Protect III

The combined HighProtect solution. Meets the requirements for air flow, water-tightness and mechanical robustness and can also be used as an individualized nameplate.

[Translate to English:] DAE HighProtect IV

PCS High Protect IV

The HighProtect solution for large housings. Very rapid pressure compensation with good water-tightness.

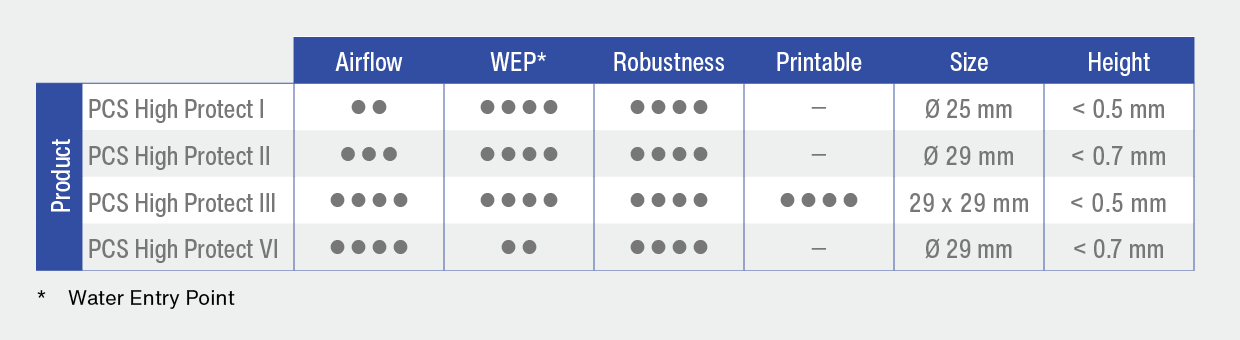

Variant Comparison

Graphic: Comparison of DAE HighProtect product variants

All listed variants are already available for you. Thanks to the innovative film, adhesive, and membrane structure, custom sizes and variants can be implemented in the shortest time with minimal tooling costs.



Venting of housings

The PCS membrane is the centerpiece of a Pressure Compensation Seal and responsible for the water entry point, airflow, and oleophobicity—characteristics that are decisive for proper venting of a housing, especially in the automotive sector.
